Data-Driven Selection: Black Silicon Carbide Grit Size & Hardness Parameters Explained

1. Key Performance Parameters of Black Silicon Carbide

Black Silicon Carbide (BSiC) is widely used in precision grinding, refractory materials, and semiconductor processing due to its exceptional hardness (Mohs hardness 9.2–9.3), thermal conductivity, and wear resistance. Its critical parameters include:

• Grit Size: Determines material removal rate and surface finish, standardized by FEPA (Europe), JIS (Japan), and ANSI (USA) (e.g., F8–F220).

• Hardness: Includes microhardness (2840–3320 kg/mm²) and Knoop hardness (2670–2815 kg/mm²), directly impacting abrasion resistance and cutting efficiency.

• Chemical Purity: Specifications like SiC ≥98% and Fe₂O₃ ≤1.2% ensure stability and minimize contamination.

2. Data-Driven Grit Size Selection Methodology

2.1 Correlation Between Grit Size and Processing Outcomes

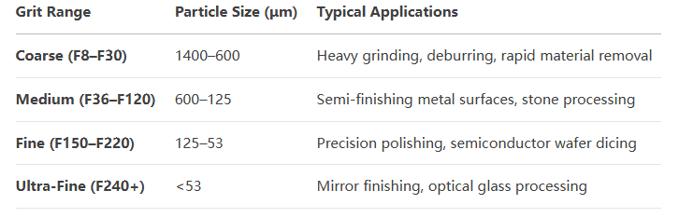

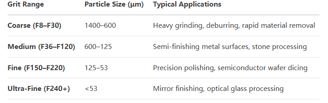

Per FEPA standards, BSiC grit sizes are categorized as:

Data-Backed Validation:

• Coarse Grit (F16): Bulk density 1.34–1.44 g/cm³, ideal for gray cast iron grinding (surface roughness Ra ≥6.3μm).

• Ultra-Fine Grit (F1200): Particle size 6.7±0.6μm, used for monocrystalline silicon wafer polishing (Ra ≤0.2μm).

3. Hardness Parameter Optimization Strategies

3.1 Microhardness vs. Material Removal Rate

BSiC’s microhardness (2840–3320 kg/mm²) exceeds alumina (2200–2400 kg/mm²) but trails diamond (8000–10,000 kg/mm²). Key insights:

• High-Hardness Abrasives: Ideal for high-tensile metals (e.g., alloy steel) but require tough bonds (e.g., ceramic bonds).

• Low-Hardness Variants: Suit soft metals (aluminum, copper) and non-metals (rubber, wood) to prevent surface scratches.

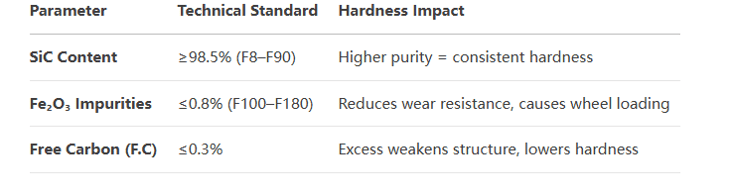

3.2 Chemical Composition Impact on Hardness

4. Industry Case Studies: Data-Driven Parameter Matching

Case 1: Semiconductor Wafer Dicing

• Requirement: Ultra-thin slicing (<100μm thickness), low surface damage.

• Parameters:

  • Grit Size: F2000 (D50=6.7μm) for clean cuts.

  • Hardness: Microhardness ≥3100 kg/mm², purity ≥99.2% SiC to avoid contamination.

Case 2: Refractory Material Production

• Requirement: Thermal stability (>1800°C), shock resistance.

• Parameters:

  • Grit Size: F16–F30 (bulk density 1.34–1.44 g/cm³) for optimal packing.

  • Chemistry: Fe₂O₃ ≤0.6% to prevent oxidation at high temperatures.

5. Common Mistakes & Mitigation Strategies

1. Ignoring Particle Size Distribution: Focusing only on nominal grit (e.g., F120) while neglecting D50 (median size) and D94 (minimum size) leads to inconsistent results.

   • Solution: Request full particle distribution reports (D3, D50, D94) from suppliers.

2. Mismatched Hardness & Bonds: High-hardness abrasives paired with weak resin bonds risk wheel fracture.

   • Recommendation: Use ceramic (V) or metal (M) bonds for enhanced tool integrity.

6. Conclusion

Selecting Black Silicon Carbide grit size and hardness requires quantitative analysis of material properties, processing goals, and equipment capabilities. By integrating FEPA standards (e.g., grit distribution, chemical specs) with real-world applications, manufacturers can achieve higher efficiency and superior finishes. Regularly validate supplier data (e.g., magnetic content ≤0.008%) and build an internal database for continuous improvement.

Originality Statement: This article synthesizes multi-source technical data (FEPA standards, industry applications) and material science principles to deliver actionable insights. Unauthorized reproduction is prohibited.
