Data-Driven Selection: Green Silicon Carbide Grit Size & Hardness Parameters Explained

Introduction

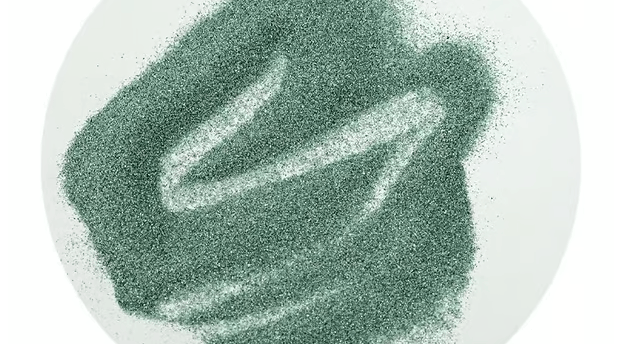

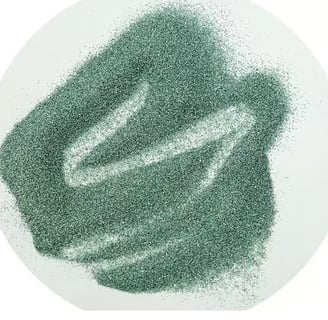

Green Silicon Carbide (SiC) is a premium abrasive material renowned for its exceptional hardness, thermal conductivity, and chemical inertness. Widely used in precision grinding, semiconductor processing, and advanced ceramics, its performance hinges on two critical parameters: grit size and hardness. This blog delves into how data-driven methodologies empower industries to select the optimal SiC specifications, balancing efficiency, cost, and quality.

1. Green Silicon Carbide: Core Properties and Industrial Value

Green SiC, synthesized with a purity exceeding 99.5%, outperforms its black counterpart in applications demanding minimal contamination and ultra-fine finishes. Its key attributes include:

• Mohs Hardness of 9.5: Second only to diamond and boron nitride.

• Thermal Conductivity (120–270 W/m·K): Dissipates heat efficiently, reducing thermal damage.

• Chemical Stability: Resistant to acids, alkalis, and oxidation at high temperatures.

These properties make it indispensable in industries like optics, electronics, and aerospace, where precision and reliability are non-negotiable.

2. Grit Size: The Backbone of Precision

Grit size dictates the abrasive’s cutting efficiency and surface finish. Green SiC is classified into standardized grit ranges, each tailored for specific applications:

Ultra-Coarse Grits (F16–F36)

• Particle Size: 1400–600 μm.

• Applications: Rapid material removal in rough grinding of ceramics or tungsten carbide.

• Data Insight: Achieves material removal rates (MRR) of 30–50 cm³/min but leaves surfaces at Ra 3.2–6.3 μm.

Medium Grits (F46–F120)

• Particle Size: 600–125 μm.

• Applications: Semi-finishing of optical glass or silicon wafers.

• Data Insight: Balances MRR (15–25 cm³/min) and surface quality (Ra 0.8–1.6 μm).

Fine and Ultra-Fine Grits (F150–F2000)

• Particle Size: 125–3 μm.

• Applications: Mirror polishing of sapphire lenses, semiconductor wafer dicing.

• Data Insight: Delivers Ra ≤0.1 μm finishes but requires slower MRR (2–5 cm³/min).

Selection Strategy:

• Prioritize grit size based on the target surface roughness (Ra) and material hardness. For instance, F800–F1200 grits are ideal for achieving Ra 0.05–0.1 μm on gallium nitride (GaN) substrates.

3. Hardness Parameters: Beyond the Mohs Scale

While Mohs hardness provides a baseline, advanced metrics like Knoop Hardness (2500–2800 kg/mm²) and Vickers Hardness (2200–2400 HV) offer deeper insights into Green SiC’s wear resistance and cutting longevity.

Factors Influencing Effective Hardness

1. Crystallographic Structure: Hexagonal α-SiC crystals exhibit anisotropic hardness, excelling in directional grinding.

2. Impurity Content: Iron (Fe₂O₃ ≤0.2%) and free carbon (≤0.1%) levels impact structural integrity.

3. Post-Processing: Thermal treatments (e.g., acid washing) enhance purity and microhardness by 5–10%.

Case Study:
A solar panel manufacturer switching from F240 to F800 grit Green SiC reduced subsurface damage in silicon ingots by 40%, directly correlating to a 15% increase in photovoltaic efficiency.

4. Data-Driven Decision Frameworks

Modern industries leverage analytics to align SiC properties with operational goals:

Step 1: Define Performance Metrics

• Material Removal Rate (MRR): Critical for high-volume production.

• Surface Roughness (Ra): Vital for optical or semiconductor components.

• Tool Life: Measured in hours of consistent performance.

Step 2: Map Parameters to Applications

• Semiconductor Wafer Dicing:

  • Grit: F1500–F2000 (D50=3–6 μm).

  • Hardness: ≥2600 kg/mm² (Knoop).

  • Outcome: Minimizes micro-cracks (SSD <10 nm).

• Ceramic Matrix Composite Grinding:

  • Grit: F80–F120 (D50=180–53 μm).

  • Hardness: Optimized for SiC-SiC composites (Vickers ≥2300 HV).

  • Outcome: Extends grinding wheel life by 30%.

Step 3: Validate with Real-World Testing

• Lab Trials: Measure tool wear rates and surface integrity under controlled conditions.

• Field Feedback: Collaborate with end-users to refine grit-hardness combinations.

5. Overcoming Common Challenges

Challenge 1: Balancing Speed and Precision

• Solution: Use hybrid approaches—coarse grits for bulk removal followed by fine grits for finishing. For example, F240 → F800 progression reduces total cycle time by 25% in mold polishing.

Challenge 2: Cost vs. Performance Trade-offs

• Solution: High-purity Green SiC (Fe₂O₃ ≤0.1%) costs 20–30% more but reduces rework rates by 50% in medical device manufacturing.

Challenge 3: Environmental Compliance

• Solution: Adopt closed-loop recycling systems to reclaim spent abrasives, cutting waste costs by 40%.

6. Future Trends in Abrasive Selection

• AI-Powered Optimization: Machine learning models predict ideal grit-hardness pairs based on material properties.

• Sustainable Manufacturing: Low-energy SiC synthesis methods reduce carbon footprints.

• Nano-Abrasives: Submicron Green SiC (≤1 μm) for atomic-level surface finishing.

Conclusion

Selecting the right Green Silicon Carbide grit size and hardness is both an art and a science. By integrating material data, application requirements, and advanced analytics, industries unlock unparalleled precision and efficiency. Whether polishing a semiconductor wafer or grinding a turbine blade, data-driven choices ensure every micron matters.
