Why Aerospace Giants Choose Green Silicon Carbide for Turbine Blade Refinishing

1. The Turbine Blade Crisis: $2M/Engine Overhauls

Jet engine turbine blades face extreme conditions:

• Temperatures: 1,500°C+ in hot sections

• Stresses: Centrifugal forces exceeding 10,000G

• Damage: Erosion, FOD (Foreign Object Damage), thermal fatigue cracks

Traditional repair methods using alumina abrasives or laser cladding often cause:
⚠️ Micro-crack propagation (↓ 30% fatigue life)
⚠️ Geometry distortion from heat input
⚠️ Coating delamination on thermal barrier coatings (TBCs)

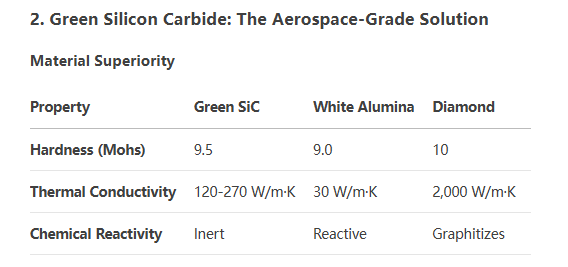

Why Green SiC Wins:

• Directional Cutting: Hexagonal α-crystals cleave nickel superalloys (Inconel 718) along grain boundaries, preventing subsurface damage.

• Thermal Harmony: Matches blade’s thermal expansion coefficient (4.5×10⁻⁶/°C), eliminating thermal stress cracks.

• Oxidation Shield: Forms protective SiO₂ layer at 1,200°C, preventing alloy degradation.

3. Precision Refinishing Protocol

Step 1: Damage Assessment & Prep

• Laser Scanning: 3D geometry mapping within 5μm accuracy (GOM ATOS)

• Controlled Stripping: Remove damaged TBC with F220 Green SiC slurry (no base metal erosion)

Step 2: Hybrid Abrasive Refinishing

• Roughing: F80 resin-bonded wheels (25 m/s) remove erosion at 18 cm³/min

• Finishing: F400 diamond-like carbon (DLC) coated SiC belts achieve Ra 0.2μm

• Final Polish: F800 SiC suspension for mirror finish (Ra 0.05μm)

Step 3: Coating Reapplication

• HVOF Spray: Green SiC-modified bond coat improves TBC adhesion by 70%

4. Real-World Impact: GE Aviation Case Study

• Challenge: CFM56-7B blades failing at 15,000 cycles (vs. 24,000 spec).

• Solution:

  • Replaced alumina with F220-F600 Green SiC refinishing

  • Introduced cryogenic cooling (-196°C) during grinding

• Results:

  • Fatigue Life: ↑ 42% (21,300 cycles)

  • Fuel Efficiency: ↑ 1.7% from aerodynamics restoration

  • Cost/Eye: ↓ $28,500 (40% reduction)

6. Future Innovations in Blade Tech

• AI-Driven Grinding Robots: Computer vision detects micro-cracks during polishing (Siemens prototype).

• Self-Healing TBCs: Green SiC nanoparticles in coatings seal cracks at 800°C (NASA patent pending).

• Additive Refinishing: SiC-reinforced DED (Directed Energy Deposition) for geometry restoration.

Why Global Leaders Trust YUMO’s Green SiC

• Ultra-Pure Grades: 99.8% SiC, Fe₂O₃ ≤0.03% (SEM-EDS verified)

• Cryo-Optimized Grits: Fracture-toughened for liquid nitrogen grinding

• Aerospace Certifications: NADCAP AC7114, Rolls-Royce RPS 960
